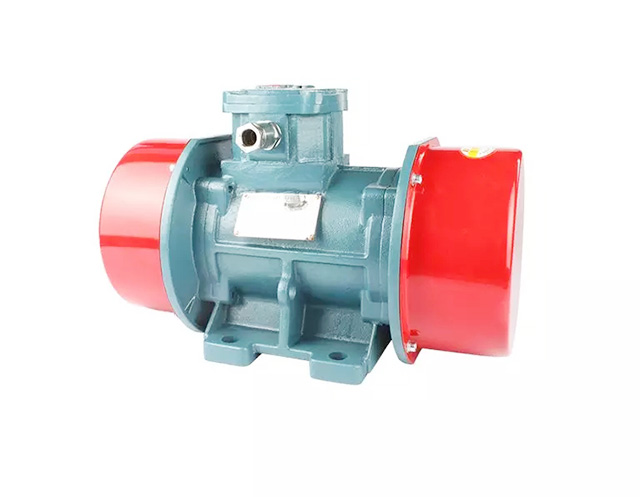

Understanding YBZ dust-proof vibration motor

YBZ series high-efficiency dust-proof explosion-proof three-phase asynchronous vibration motors are marked as:

Ex d ⅡA T4 Gb

Ex d ⅡB T4 Gb

Ex tD A21 IP65 T130 ℃

Enclosure protection grade is IP65

The motor adopts Class F insulation

Applicable to the IIA Gb and IIB Gb levels of the factory environment; Zones 21 and 22 in dust environment; Zones 1 and 2 of the explosive gas environment in temperature groups T1 to T4.

(1) The altitude does not exceed 1000 meters.

(2) The maximum ambient air temperature varies with the season, the maximum temperature does not exceed 40 ° C, and the minimum temperature is -20 ° C.

(3) The average maximum relative humidity of the wettest month is 90%, and the average minimum temperature of the month is not higher than 25 ° C.

(4) Voltage: 380V, 660V, 380V / 660V.

(5) Frequency: 50Hz.

(4) Working mode: S1 (continuous).

(5) Connection method: Y (motor with rated power 3kW and below), △ / Y (motor with rated power 4kW and above).

Maintenance knowledge of explosion-proof vibration motor

1. Periodic inspection and cleaning, the housing must not be dusty, and the motor must not be washed with water.

2. The allowable temperature of the bearing during operation must not exceed 95 ℃. The motor of frame size 112 and above shall check the bearing at least once every 2500 hours of operation. If the bearing grease is found to be deteriorated, it must be replaced in time. Before replacement, the bearing must be cleaned with gasoline.

Vibration motors are often damaged due to grease quality problems and timely refilling. Filling and replacing the same type of grease according to regulations is very important for the normal operation and service life of vibration motors.
